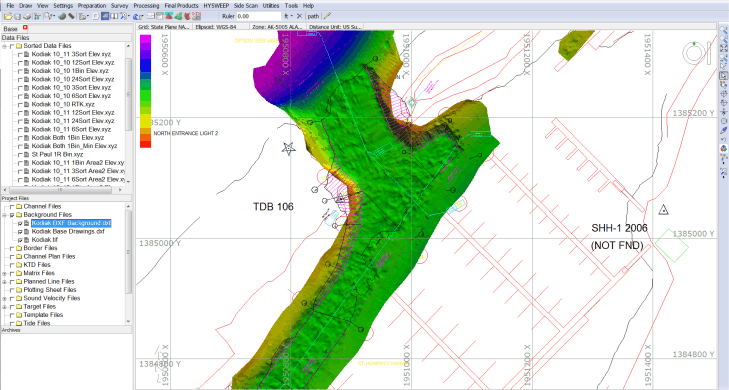

Hypack File

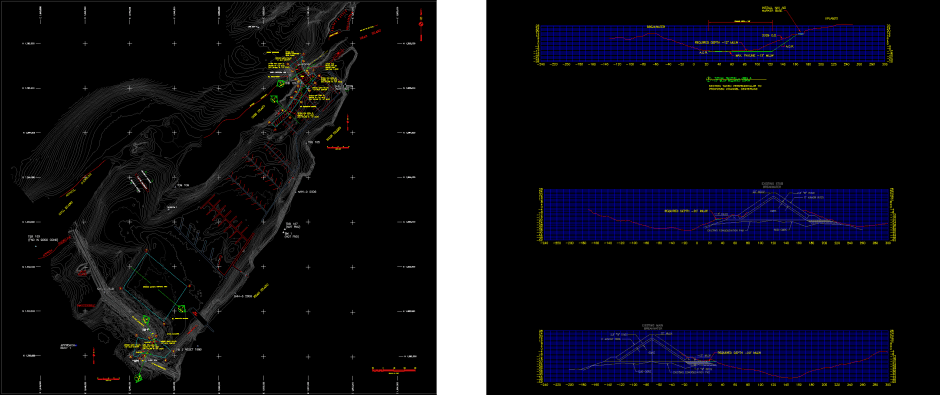

Civil 3D File

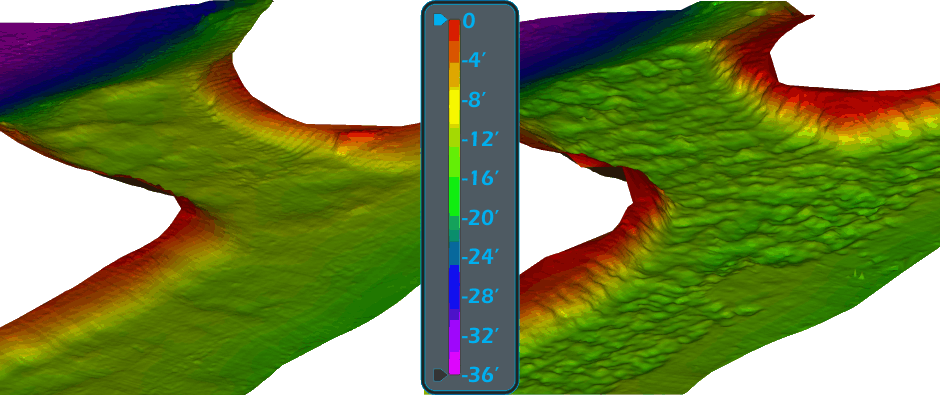

Pre and Post Dredge Surveys
Kodiak Alaska Multibeam survey

Scope of Project

Maintenance dredging of St. Herman Harbor in Kodiak Alaska was performed during the summer of 2013 by Western Marine Construction for the U.S. Corps of Engineers, Anchorage District. Hughes & Associates conducted three multibeam hydrographic surveys in support of the dredging operations over a three month period of time. All surveys were performed with an ES3-M 120° echosounder with integrated MRU installed with our custom mobile mounting bracket on a vessel of opportunity.

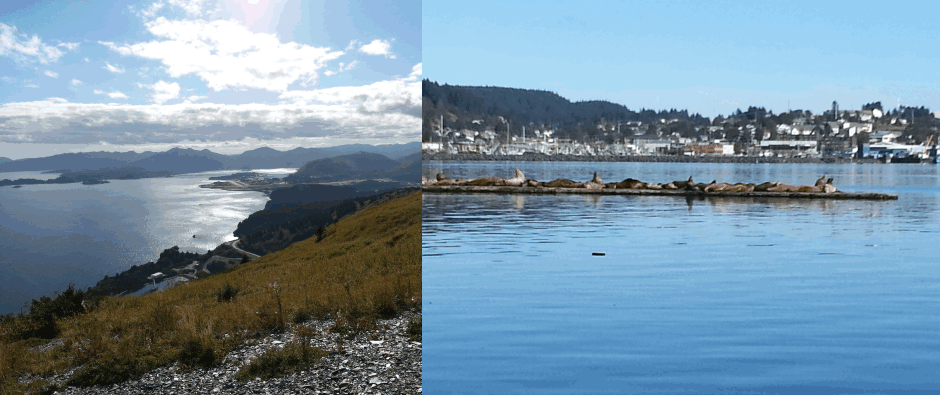

About the Harbor

St. Herman Harbor is located on Near Island in the City of Kodiak, 250 miles southwest of Anchorage. St. Herman Harbor is approximately 3,800 feet long running northeast to southwest and varies from 500 feet wide on the northeast side to 1,800 feet wide on the southwest side. The Harbor facilities in Kodiak have protected moorage for 650 vessels up to 150 feet in length.
